      高速模擬量輸入板卡TRION-1620-ACC/LV


      產品描述：德維創Dewetron高速電壓電流模擬量輸入板卡模塊TRION-1620-ACC/LV產品特點：采樣:16位每通道2 MS/s;24位過采樣模式ADC:低噪聲，SAR輸入范圍-電壓:±5mv ~±10 ...


      服務熱線:15021562539

          立即咨詢







      德維創Dewetron高速電壓電流模擬量輸入板卡模塊TRION-1620-ACC/LV

      產品特點：

      采樣:16位每通道2 MS/s;24位過采樣模式
      ADC:低噪聲，SAR
      輸入范圍
      -電壓:±5mv ~±100v
      -IEPE?:±5 mV至±50 V
      電氣隔離

      產品參數：

      TRION-1620-ACC/LV 技術細節

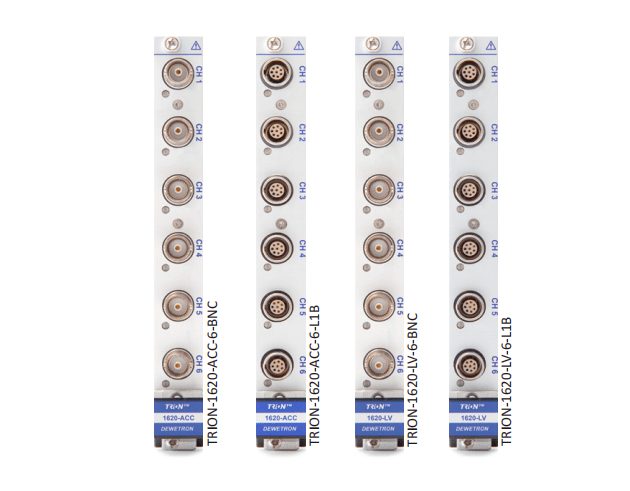

      輸入通道      		TRION-1620-LV-6-BNC6 channels BNC, voltage input
      TRION-1620-ACC-6-BNC6 channels BNC, voltage input; IEPE@;1 counter
      TRION-1620-LV-6-L1B6 channels 1B LEMO,voltage or current input,1 to 28Vsen-
      sor supply, TEDS
      TRION-1620-ACC-6-L1B6 channels 1B LEMO,voltage or current input, IEPE@,1 count-
      er, sensor supply, TEDS
      采樣率/分辨率Highspeed mode>1 to 2 MS/s16-bit
      Over sampling mode100 S/s to 1 MS/s24-bit
      數據傳輸16-bit/24-bit
      直接內存讀取速率6  analog  channels:max  24  MB/s;1xcounter:max.16  MB/s
      ADC類型SAR(Successive Approximation Register)
      輸入量程

        -  電壓

        - IEPE

        - 電流      		±5mV,±10mV,±20mV,±50mV,±100mV,±200mV,±500mV,±1V,±2V,±5   V,±10   V,±20   V,
      ±50 V,±100 V

      ±5mV,±10mV,±20mV,±50mV,±100mV,±200mV,±500mV,±1V,±2V,±5V,±10V,±20V
      ±50 V

      ±10 mA,±20 mA,±50 mA,±100 mA
      精度電壓DC to 1kHz±0.02% of reading±0.02 % of range±20 uV
      >1 kHz to 5 kHz±0.2 % of reading±0.02% of range ±20 μV
      >5 kHz to 10kHz±0.5% of reading±0.02% of range±20uV
      >10 kHz to 50 kHz±1.00 % of reading±0.02 % of range±20uV
      >50 kHz to 100 kHz±3.00% of reading±0.02% of range±20 μV
      電流DC to 1kHz±0.1% of reading±0.02 % of range±10 μA
      >1 kHz to 5 kHz±0.2 %of reading±0.02% of range ±10 μA
      >5 kHz to 10kHz±0.5% of reading±0.02 % of range ±10 μA
      >10 kHz to 50 kHz±1.00% of reading±0.02 % of range ±10 μA
      >50 kHz to 100 kHz±2.00% of reading±0.02% of range±20 μA
      輸入噪聲 (5 mV range)

         - 0to 10 Hz

         - Noise density      		1.5 μVp

      6.4  nV/SQRT(Hz)
      輸入阻抗1 MQ shunted by 18 pF
      電流輸入Internal 10 Ω shunt; max. 100 mA protected with resettable fuse
      偏置電流<1  nA
      輸入耦合DC;AC:0.16Hz2)
      增益誤差Typically 10 ppm/℃ max.20 ppm/℃
      置零偏置Typically 0.3μV/°℃+10 ppm of range/°℃,max 15μV/℃+ 20 ppm of range/℃
      線性度Typically 0.01 %
      輸入配置lsolated
      隔離阻抗lsolation resistance >1 GQ; Isolation capacitance typically 15 pF
      輸入電壓和地滿足
      EN61010-2-30
      		33  Vnws,46.7Vpex,70Voc
      隔離電壓
      (channel-to-channel and
      channel-to-chassis)      		1500 VpEAK典型信噪比
      過壓保護±300  V
      IEPE@ 激勵4mA,8mA±10%@1%±1mVaccuracy       @24Vcompliance       voltage
      Voltage 激勵1to   28V@1%±1mVaccuracy   freely   programmable(max.100   mA,max.1W)per   channel

      Free SNR,effective number
      of Bits4)      		20 mV range2 V range100V range
      SNRSFDR5)ENOB6)SNRSFDR5)ENOB6)SNRSFDR5)ENOB6)
      采樣率[dB][dB][Bit][dB][dB][Bit][dB][dB][Bit]
      0.1 kS/s10412517.013015521.313015521.3
      1 kS/s9712515.812315020.112214520.0
      10 kS/s9112214.811115018.111213518.3
      100 kS/s8211613.310614217.310513017.1
      200 kS/s78.711612.8103.714216.910212516.7
      500 kS/s 7411412.099.514016.29812116.0
      1000 kS/s718711.593.213015.29311615.2
      2000 kS/s 5656 9.0888814.3888814.3
      典型THD-97 dB
      典型共模抑制比CMR

         -≤2Vrange

         ->2Vrange      		>140dB   @    50Hz    >120dB@1kHz

      >90dB  @  50Hz     >60dB  @1kHz
      低通濾波 (-3 dB,
      digital)

         - Characteristic

         - Filter order      		10   Hz,30   Hz,100   Hz,300   Hz,1kHz,3kHz,10kHz,30kHz,100kHz,300kHz,600kHz


      Bessel or Butterworth

      2nd,4h,6th,8th
      模擬抗混疊濾波2d order Bessel, automatically selected
      帶寬

      (-3 dB, deactivated digital
      filter)      		1 MHz 2d order Bessel fiter
      Crosstalkfin1kHz[10  kHz]≤2VRange:120  dB  [105  dB]
      通道間相位延遲Tvnicallv<10ns
      Y      		when
         1y  y4      		using
      …      		1the
           41      		samerange ·<60ns      for
          111        41      		using      different
           M      .  11      		rangps
      141    11
      主板間相位延遲<30 ns
      計數器1x counter channel linked to analog channel #1; trigger level 70 % of actual analog input

      range
      計數器模式Event counting, period, frequency, pulse width, duty cycle
      計數器輸入帶寬1 MHz to 10 kHz depending on analog filter of CH1
      ESD 靜電防護IEC61000-4-2:±8kVair discharge,±4 kV contact discharge
      兼容TEDS chips
      (LEMO  only)      		C2/06                 062/30△                 062/27                          062/22                 062/22
      E          UU          LyLtyUF      LyE          yL          U0E          √4          2y      t          √
      功耗Voltage mode: 6 W; IEPEO mode:7.5 W
