德維創高速數采板卡TRION(3)-18xx-MULTI

通用輸入模塊

采樣:每個通道5MS/s

輸入類型:電壓，電橋，電阻，RTD, IEPE?電流和計數器

電氣隔離

CAN:高速CAN2.0端口

帶寬:2 MHz

TRION3-18xx-MULTI-AOUT-8:±5v，±10v或±30mA隔離輸出

TRION(3)-18xx-MULTl 技術指標
輸入類型	電壓 IEPE 電橋電阻電流 MSI	量程	支持的傳感器
		±2 mVto±100 V 可編程
		±100mVto±10V 可編程	IEPE@ sensors
		±1 to 1000 mV/V	4-,5-,6-wire full bridge 3-,4-,5-wire 12 bridge 2-,3-,4-wire 1% bridge 120/350/1000 Ωinternal % bridge completion
		10 Ω to 30 kQ	Potentiometer, resistance temperature detec-tion:Pt100,Pt200,Pt300,Pt500,Pt2000(2-,3-,4-wire)
		±30 mA	4 to 20 mA sensors; loop-powered sensors
		MSI2-CH-x:500 to 50000 pC MSI2-TH-x:various TC ranges MSI2-LVDT	LVDT, RVDT, charge output and thermocouple sensors
采樣率	TRION-1820-MULTI TRION3-1820-MULTI	100 S/s to 2 MS/s24-bit
采樣率	TRION3-1850-MULTI	100 S/s to 2 MS/s >2 MS/sto 5 MS/s	24-bit 18-bit

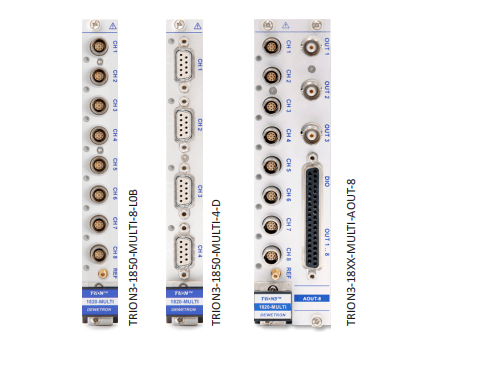

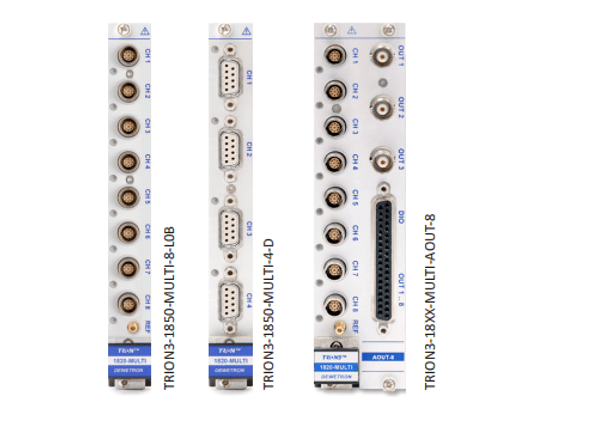

輸入通道/ 連接	TRION-1820-MULTI-4-D	4 channels D-SUB	CH1 CH2 Analog/CAN Analog			CH3 Analog/CNT	CH4 Analog/CNT
	TRION3-1820-MULTI-8-L0B	8 channels OB LEMO
	TRION3-1820-MULTI-4-D	4 channels D-SUB	CH1 Analog/CAN	CH2 Analog		CHB Analog/CNT	CH4 Analog/CNT
	TRION3-18xx-MULTI-AOUT	3 channels BNC, 1 D-SUB-37	Analog out CH1 to CH8 D11to 8 D01to4
		8 channels OB LEMO
	TRON3-1850-MULTI-8-LOB	8 channels OB LEMO
	TRION3-1850-MULTI-4-D	4 channels D-SUB	CH1 Analog/CAN	CH2 Analog		CH3 Analog/CNT	CH4 Analog/CNT
主板緩存		512 MB
滿足EN 61010-2-30的對地電壓		33 Vrms,46.7Vpeak,70 Vdc
隔離電壓 (通道間及通道和機箱)		±350Vdc
REF 端子		SMB connector to apply external calibration signal(LEMO version only)
輸入端子		9-pin LEMO EPG.0B.309(TRION3-18xx-MULTI-8-LOB) 9-pin D-SUB connector(TRION(3)-18xx-MULTI-4-D)
環境參數	操作溫度	0 to+45℃(32to 113°F)
	存儲溫度	-20 to+70℃(-4 to 158°F)
	濕度	10 to 80% non cond.,5 to 95% rel.humidity
平均無故障時間 (MIL HDBK 217F, GB)	TRION3-1820-MULTI-D	196187 小時
	TRION3 -1850-MULTI-8-LOB	93843 小時
功耗	TRION(3)-1820-MULTI-4-D	Typ.10 W,max.14 WV
	TRION3 1850-MULTI-8-LOB	Typ.18 W,max.25 W
		Voltage mode, no excitation			15 W
		IEPE@ mode(4 mA/20 mA)			15 W/19 W
		Loop powered sensor(24 V,20 mA)			20 W
		350 Ωfull bridge(5V/10V)			18 W/21W
		PT100, PT1000			15 W
	TRON3- 8xx-MULTI-OUT-8	Typ.32 W,max.50 W
