      ARINC協議美軍標數采板卡TRION-ARINC429/MIL1553


      產品描述：德維創ARINC總線協議用板卡TRION-ARINC429德維創美軍標數采板卡模塊TRION-MIL1553產品特點：ARINC 429 帶有16路輸入通道MIL 1553 帶有4路輸入通道產品參數： ...


      服務熱線:15021562539

          立即咨詢

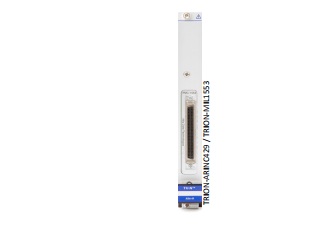

      德維創ARINC總線協議用板卡TRION-ARINC429
      德維創美軍標數采板卡模塊TRION-MIL1553


      產品特點：

      ARINC 429 帶有16路輸入通道
      MIL 1553 帶有4路輸入通道

      產品參數：


      		TRION-ARINC429TRION-MIL1553

      輸入通道
      4 channels with 4 shared RX/TX channels

      16 channels with 8 shared RX/TX channels
      and 8 RX channels
      1 channel with dual function

      4 channels with dual function

      接口      		SCSl 3 cable assembly with flying leads 36”SCSI 3 cable assembly with 15533-plug

      stub cables
      比特率12.5 k, 50 k and 100 k

      功耗      		4 CH @ 4.5 W

      16 CH @ 6.0W      		1 CH @ 5.5 W

      4 CH @ 8.5 WV
      操作溫度0 to +70°℃
      其他特色
      		1553A and 1553B support

      Parts number1)      		CPCIC3-A429-4-T

      CPCIC3-A429-16-T      		CPCIC3-1553-1D-T

      CPCIC3-1553-4D-T

      OXYGEN軟件兼容      		Decoding  of  ARINC429/MIL1553  signals

      ◆Visualization of binary data

      Export of decoded signals

      ◆Integrated internal database(equipment

         IDs and labels from the ARINC stan-
         dard2)

      Support of different baud rates for

         ARINC 429

      Check of parity bit

      Settings for equipment IDs and labels
      ◆Decoding of MIL1553 signals

      Visualization of binary data

      Export of decoded signals

      Custom message decoder for signal
        visualization in OXYGEN
